In 2017, 4,564 lives were lost in crashes involving large trucks or buses (FMCSTA 2017).
How might we use Ouster lidars to help prevent accidents in large vehicles?
As an Embedded UX Engineer in 2018/2019, and later Product Design Lead in 2020, I played a key role in shaping and launching a product called Fleetguide, the first ever lidar-based fleet safety system.
I worked across multiples projects within Fleetguide, but I led one in particular from start to finish. As the only researcher, designer, and front-end developer on the project, I was in charge of creating, almost from scratch, a real-time lidar point cloud visualization to help drivers see 360° and avoid collisions.
On top of writing production code for the app in C++ 14, I lead all phases of the user-centered design process, from contextual inquiry with truck drivers, to diary study and product analytics dashboards to understand usage after launch.
At the end of this process, the final design was a single 3D scene, with 3 camera angles that drivers could customize and toggle between. A 3D model of the vehicle was added to the scene, and 2 color palettes were used to differenciate the ground from other objects.
The display was intended to be glanced at in scenarios like backups, surround awareness, and lane changes, as shown in the video below [I recommend watching in fullscreen and 1080p resolution].

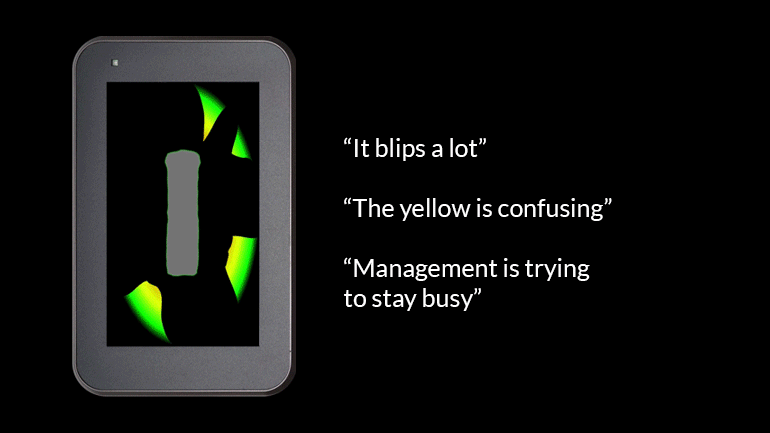

When I joined Ouster, the team had built an initial version of the display using a 2D vector graphics library called Cairo. The system was deployed inside one truck, but no user feedback had been gathered until then. On my first encounter with the driver, the first quotes I recorded were not very promising.
The team had tried to find inspirations from existing consumer cars. But while these systems, usually sonar-based, are used mostly for parking, we actually had very little idea of what the needs of garbage truck drivers were. It was important to take a pause, and I advocated to go through an initial discovery phase to make sure we were building the right thing.

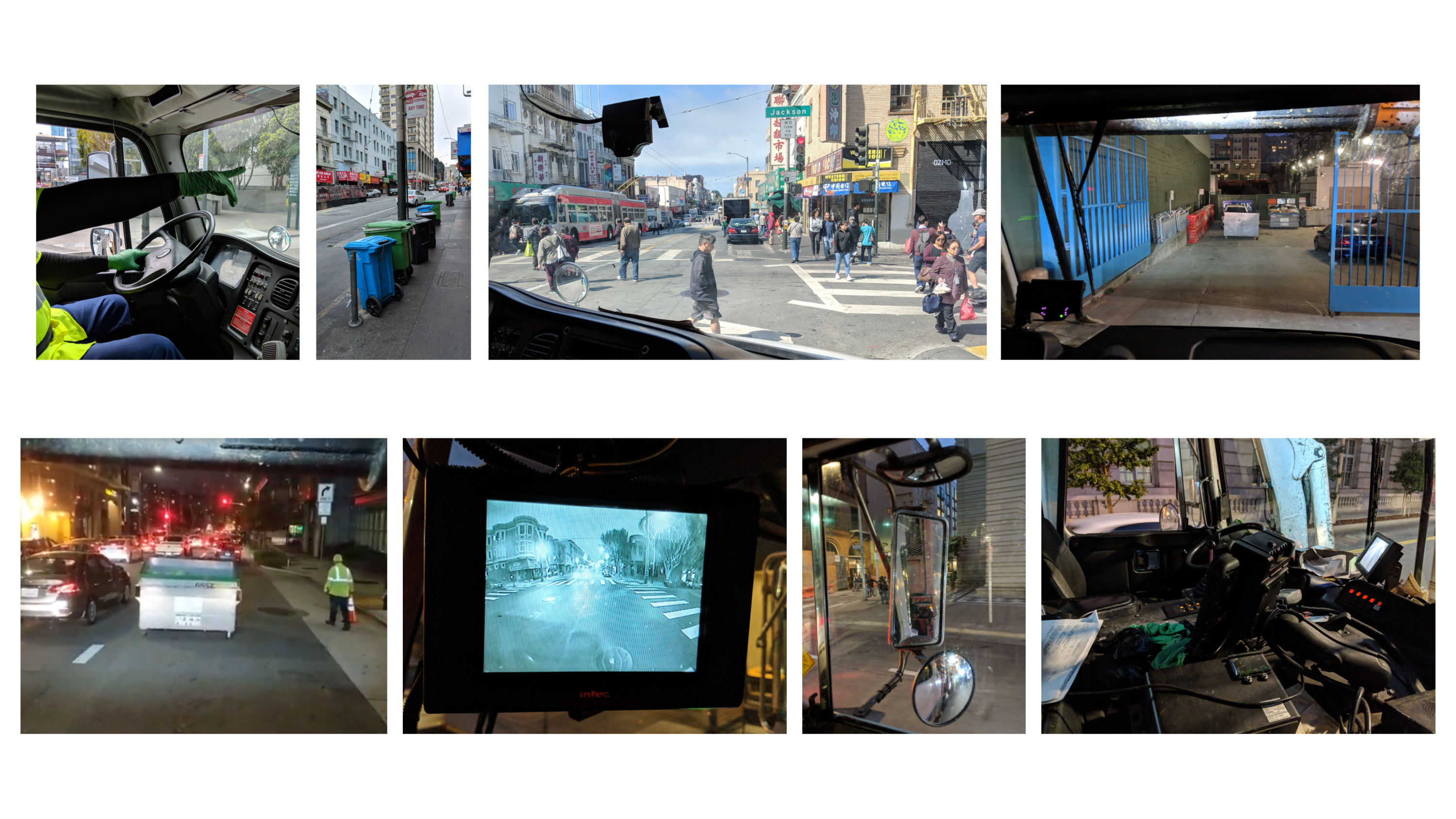

To better understand driving environments and visibility pain points of garbage truck drivers, I went on 6 ridealongs covering a wide range of truck types, routes, and shifts.
These sessions highlighted challenging maneuvers drivers made to pick up garbage containers, especially at night. Backups, wide turns against traffic, cars constantly trying to pass, power lines in the way of the truck forks, pedestrians, homeless people, cyclists, were all sources of hazards which required drivers to be constantly on the lookout. While their tools (3 mirrors on each side, 1 or more backup cameras) did the job, drivers knew that they couldn't look everywhere at once, that blindspots remained, and that an enhanced 360° context of their surroundings would help them drive more safely.
Insights from contextual inquiry also challenged initial assumptions the team had made. I had been told the display should be disabled above a few mph to avoid distractions. However, the research highlighted difficult scenarios outside of parking, and showed that most garbage truck drivers liked to keep their backup cameras on at all speeds to better estimate distances with the vehicles behind them, suggesting we ought to do the same with the display.
Overall, this research phase confirmed that a 360° awareness system could benefit drivers, and prompted us to start exploring ways to best highlight hazards.
Prototyping for lidar data posed interesting challenges. Point clouds from the sensors are difficult to replicate with standard design tools, but it was important to visualize them accurately to test how well drivers could make sense of them. I decided to create prototypes directly with code to make use of sample data I collected with our testing van, and recorded using ROS (The Robot Operating System).

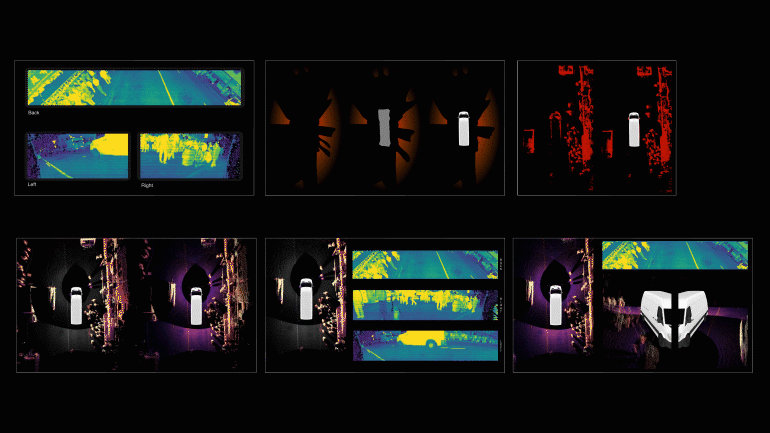

"Crazy 8" brainstorming sessions I led with the team highlighted 3 general directions to explore to visualize lidar data: 2D images, 3D points, and more abstract shapes. I took these ideas and created prototypes in parallel, hoping to later probe users on topics such as resolution, glanceability, or intuitivenes. To iterate faster, I extended existing 2D vector (using Cairo) and 3D graphics (using VTK) code meant to run on developer machines, hence avoiding compatibility and performance requirements of embedded systems for the time being.

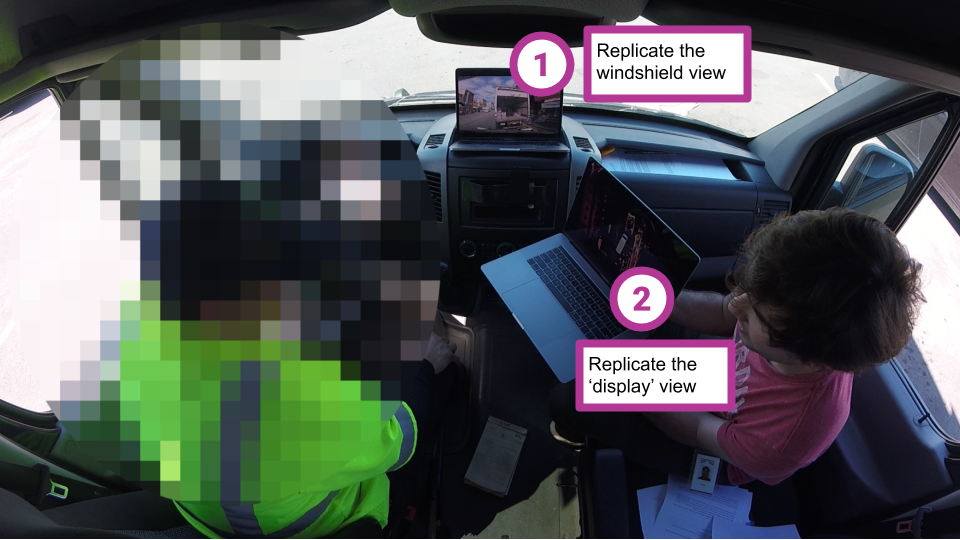

Showing still images or videos to drivers would have been a good start, but might not have given an accurate picture of their reactions while driving (when drivers should only briefly glance at the display). I tried to recreate this setting, and led 40min user testing sessions inside our test van where I asked drivers to pretend they were driving and, when prompted, to glance at a video of the prototype and share their thoughts out loud.

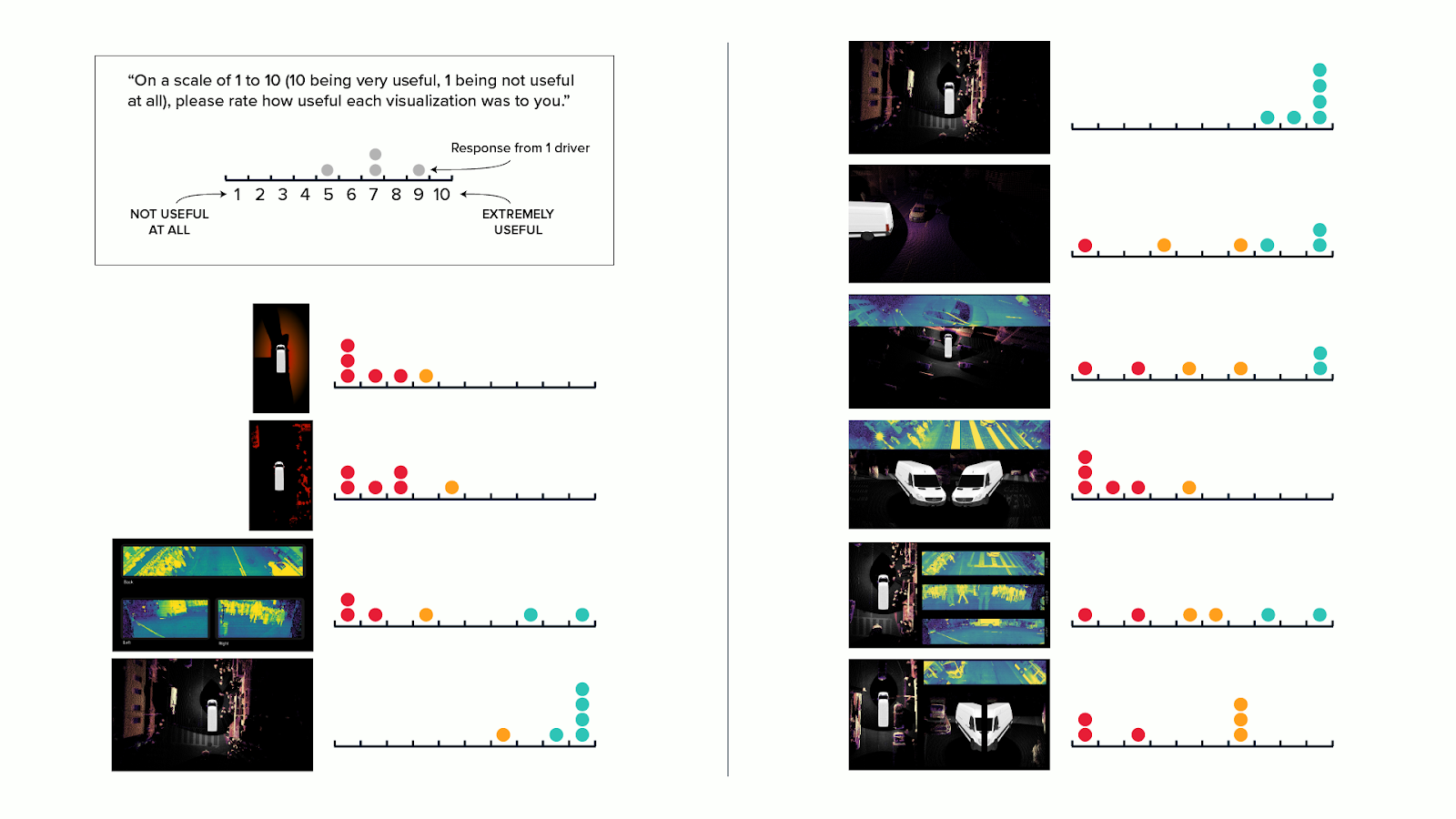

At various points, I asked drivers to rate usefulness of each prototype. A clear winner emerged: a single topdown view displaying the raw point cloud. Drivers explained details of the raw point provided more context than abstracted shapes, and prefered having a single area of the screen to look at to increase 'glanceability'.
These results, as well as direct footage from user recordings, proved to be strong artifacts to convince the team and customers that we should invest in building a 360° surround view system.

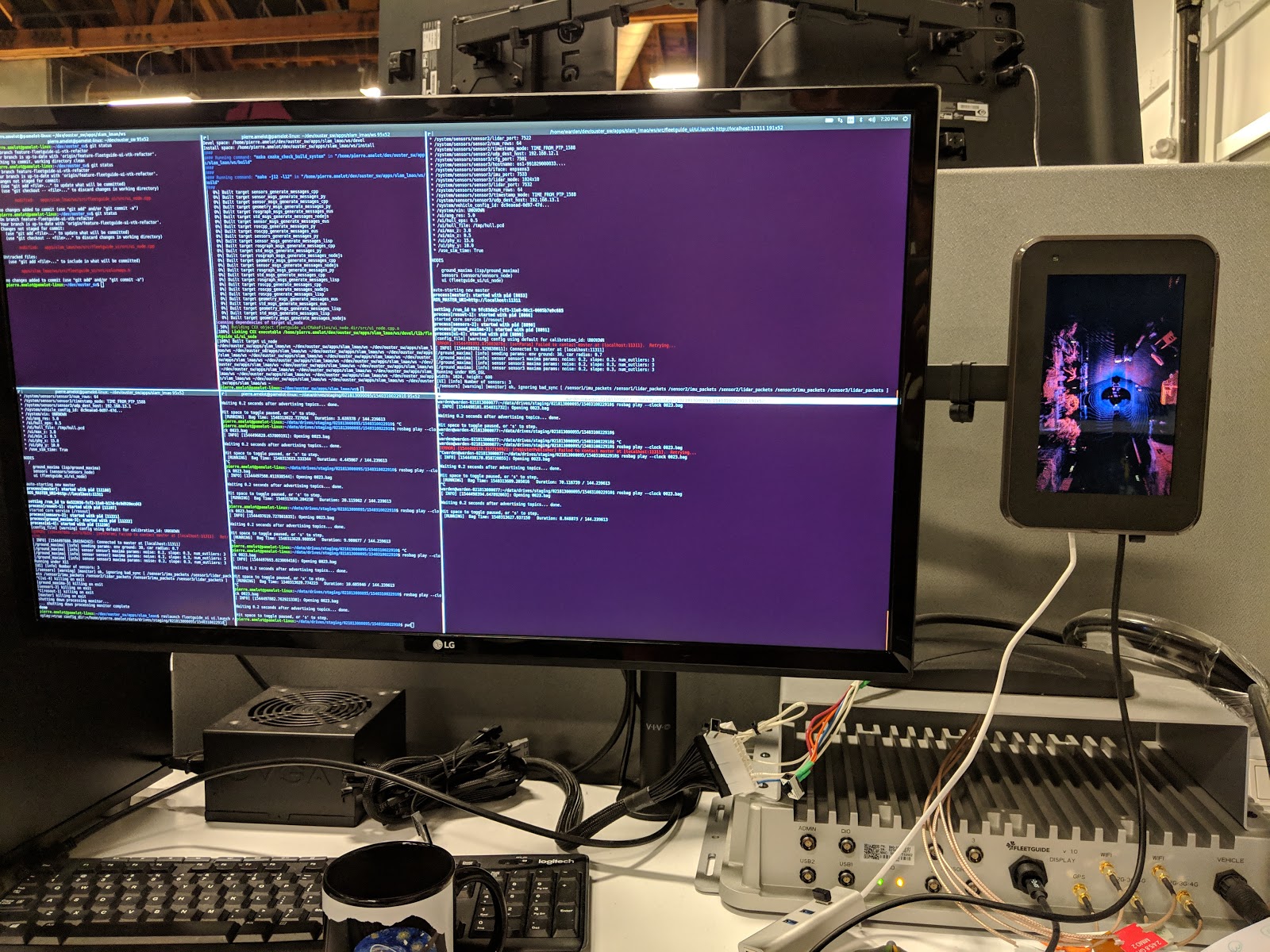

Starting from the prototyping code, I wrote a more robust and tested app using ROS and VTK meant to run on our embedded computer. The most challenging part was to find a graphics library that could work on our system (which did not have an X server). SDL2 handing an OpenGL context to a specific commit of VTK built for EGL ended up being the solution. The app ran with little latency at ~30FPS, and was ready to be used in trucks.

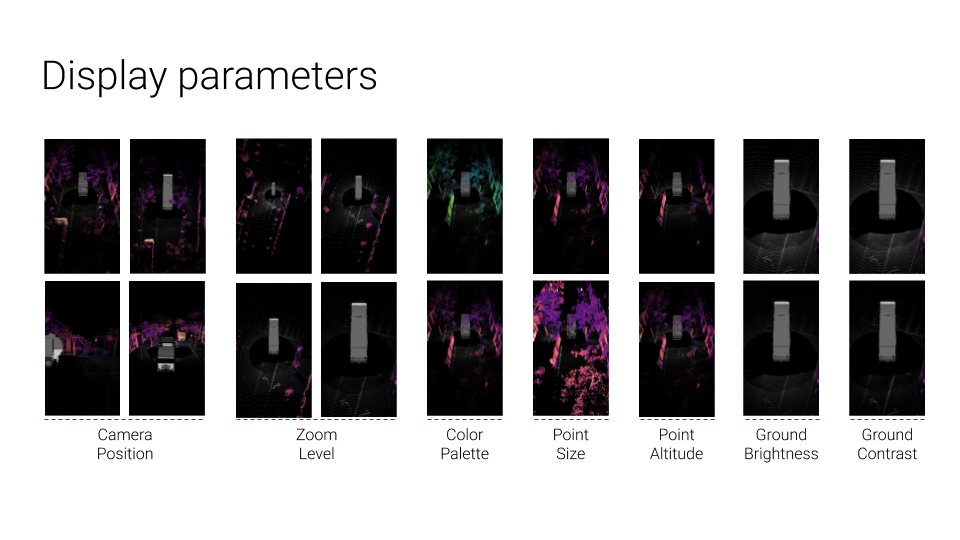

We knew the general direction for the display, but more questions remained regarding the 3D scene. Early on in the code, I built the ability to change parameters (camera angles, color palettes, etc..) with a config file, or with key presses in real time.

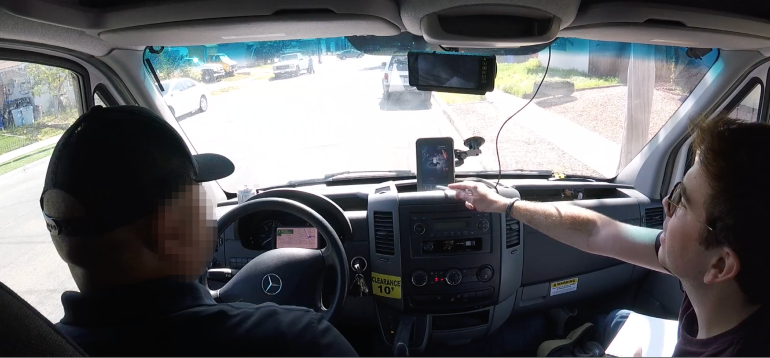

Drivers were enthusiasts about video prototypes, but I needed to validate they felt the same in their truck. I went on multiple ridealongs with drivers to see their initial reactions to the real-time display prototype. I watched their usage over a few hours, and gathered their feedback on various parameters I user tested during the sessions. I would install the display at the beginning of the route, and take it back at the end.
Drivers had overwhelmingly positive reactions to these initial sessions, and confirmed we were going into the right direction.

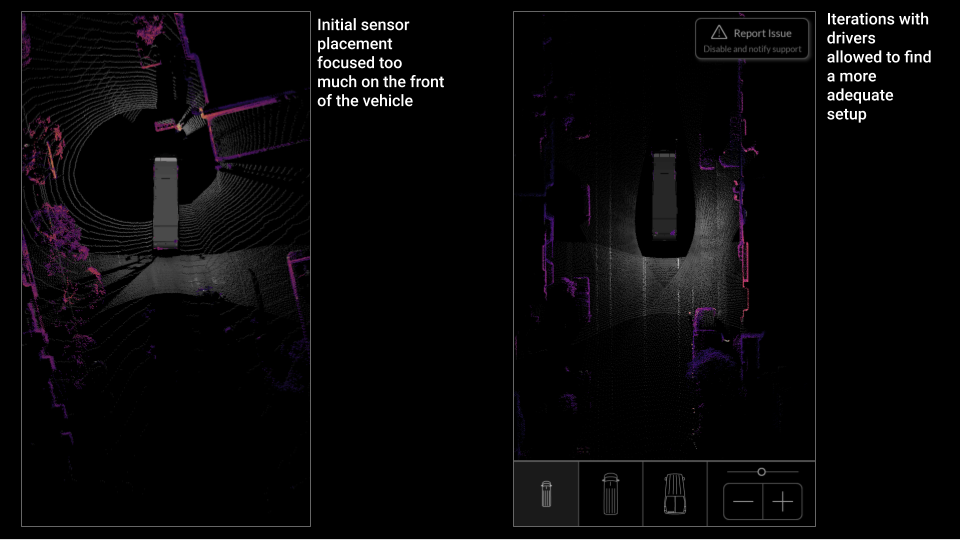

User tests also showed drivers wanted to see futher out on the back of their vehicles, and see more of the roof of cars. Using these insights, we adapted our sensors locations to reduce blinspots and improve coverage.
User tests revealed drivers needed customization of camera angles and zooms. To add buttons and toggles in preparation for launch of the display, I built a full UI toolkit with event capture and bubbling between SDL and VTK.

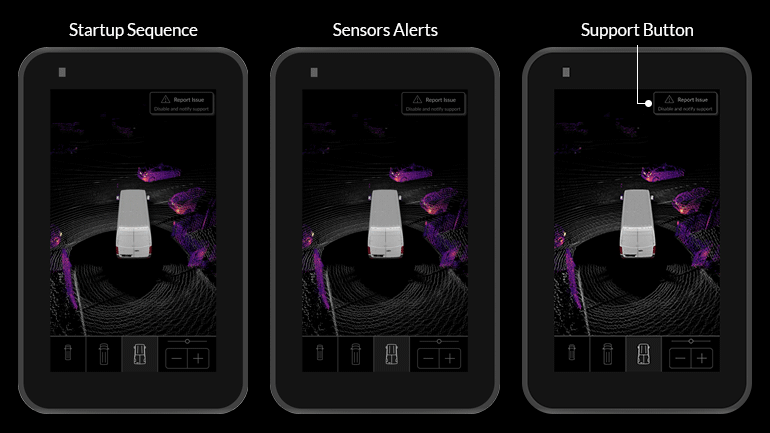

The display being a safety critical system, I also ensured it would be resilient to startup, alerts and issues drivers would encounter.
As soon as we permanently installed displays in trucks, it was important to keep in touch with drivers to understand product usage. On top of ridealongs, I built SQL Data Studio dashboards displaying product metrics (such as time spent in each camera view, or time series of the UI state). I also started a diary study with drivers via text messages, where I would ask them to text about interesting or frustrating situations with the display. I also asked them to fill a mobile survey periodically.
The diary study revealed areas of improvement, for instance regarding the display appearance in different weather conditions. Sunny days caused glare on the display, while rainy days caused the point cloud colors were too dark.
This stream of feedback allowed us to keep iterating on the product hardware and software. In the winter of 2020, the system was installed on 15 vehicles. For the future, we had a solid product roadmap informed by an intimate understanding of user needs.
