Scanning mined areas with a metal detector requires a rigorous technique. At all times, the detector should be kept low and flat, and the moves should be precise and slow. To build enough muscle memory, soldiers receive more than a hundred of hours of training before going to the field.
How might we accelerate training of US military deminers using Augmented Reality?
As a Graphics Engineer at NREC (robotics R&D Lab attached to Carnegie Mellon University), I developed a Unity AR app to help deminers get instant feeback on their technique. I rapidly iterated over prototypes across a variety of hardware and libraries, culminating in a HoloLens app overlaying the detector's motion information directly on the ground.
When I joined NREC in 2017, the team had already built a custom piece of hardware to track the detector's base relative to the ground. Position and orientation measurements were sent by the device over the network.
The goal for this new project was to listen for these motion measurements, and overlay them on the field of view of deminers using Augmented or Mixed Reality. My job as only engineer/designer on this AR project was to investigate feasibility of this idea, and to build an experience that we could pitch to the US Army Research Office.
I first experimented with different headsets the team had purchased: Atheer Air, ODG R7, and Microsoft HoloLens. While field of view of the Atheer and form factor of the ODG were appealing, their lack of inside-out tracking and the hardware issues encountered gradually led me to prioritize for a HoloLens experience.
As a software stack, I converged towards using Unity with the marker tracking library Vuforia. This allowed to develop for different platforms at the same time: while I was building HoloLens and ODG app for deminers, I was also getting "for free" an Android mobile/tablet AR app that observers could use during demos.
For faster prototype development, I recorded and replayed packets using a combination of sofware: Wireshark, Colasoft Packet Player, and TraceWrangler. I could then iterate offline over different visualizations of the detectors movements.

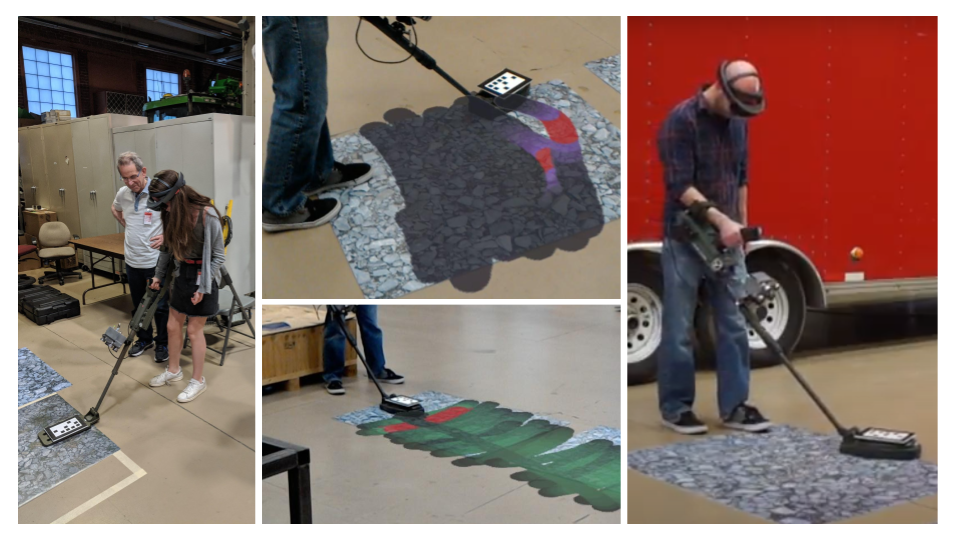

Since I had no direct access to soldiers, I gathered feedback amongst NREC employees, all first-time detector users, through user tests of the ODG and HoloLens prototypes.

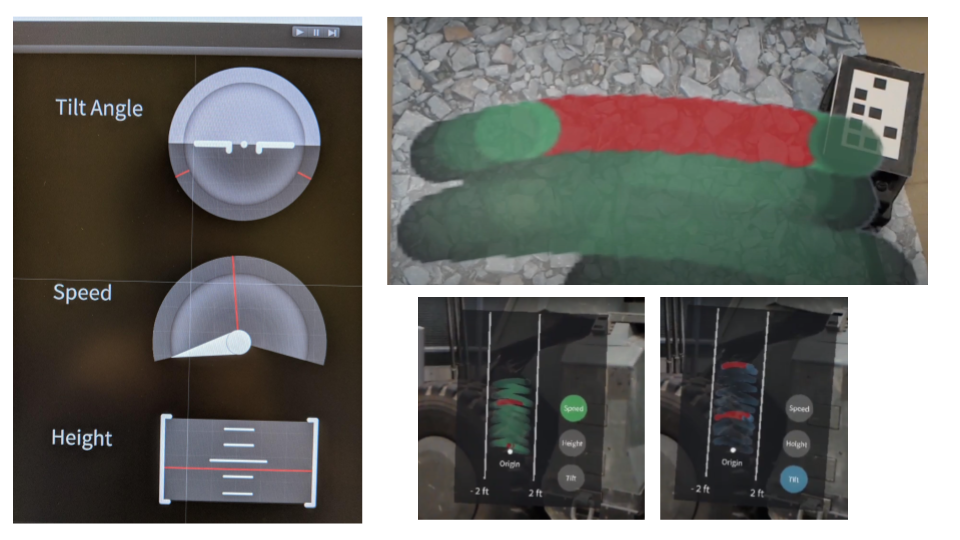

Overall, my colleagues found the AR app gave them a clear framework to self-improve on their technique. They also pointed out issues such as loss of tracking (especially for tall users) and low framerate, and felt items like tracking status, color palettes, and voice commands discoverability could be improved.
Acting on users feedback, I took advantage of Unity's profiling tools to reduce performance bottlenecks. In particular, I started writing detector position measurements directly to a texture instead of rendering waypoints as individual meshes.
To improve tracking, I also ran test bench experiments against multiple Vuforia marker types and form factors. After recording data with Unity, exporting it to CSV, and plotting the results in Matlab, I was able to print an optimized marker for our use case.
Once stable, the HoloLens AR deminer app demo became a must-see stop of NREC tours, and I also created a pitch video of the project to show visitors.
Although project sponsors were excited about the demo and prospects of the AR app, I unfortunately never got direct access to soldiers in the 10 months I worked at NREC, and many hypotheses were yet to be tested in actual military training environment.
